How to search through Flow Builder Logs

There are several cases where you might want to filter out a specific end user's journey in Flow's Logs.

Dive into the following few lines to discover how to perform a couple of them.

Table of contents

• Example 1: Search for a phone number

• Example 2: Search for an error

• Example 3: Search for a custom variable

• Example 4: Search based on if a step has been executed or not

• Example 5: Search to determine if an end-user dropped off from a chatbot Flow

Before getting started

You will need:

• A MessageBird account

Example 1: Search for a phone number or display name

There are cases when one of your end users might come to you complaining that they have not received a message you have sent. You would want to filter out that specific user, either by contact number or their display name, to check logs of invocations relating specifically to them:

1) Visit the Flow

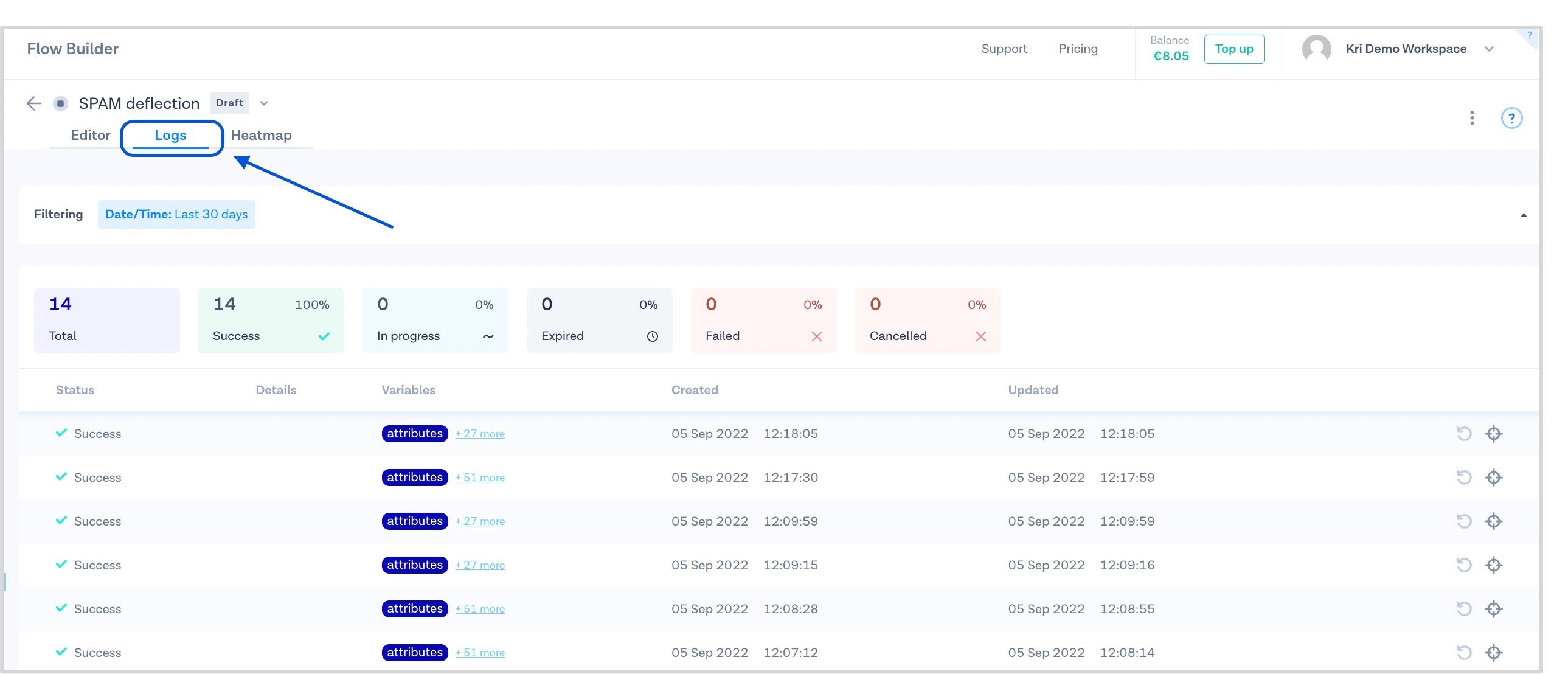

2) Navigate to its Logs:

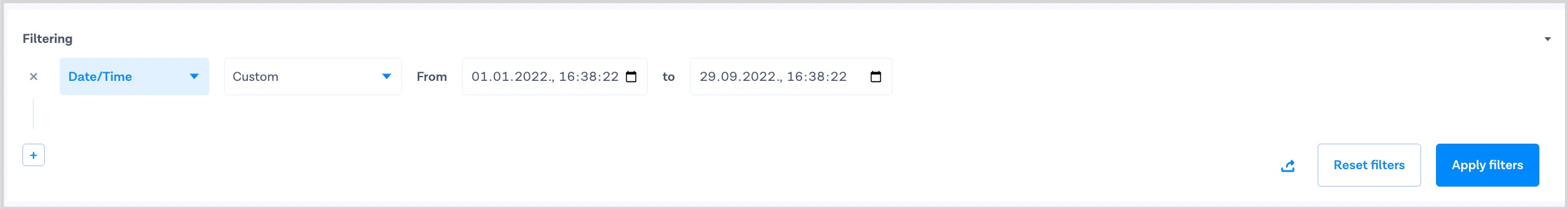

3) Select the timeframe you would like to apply for your search:

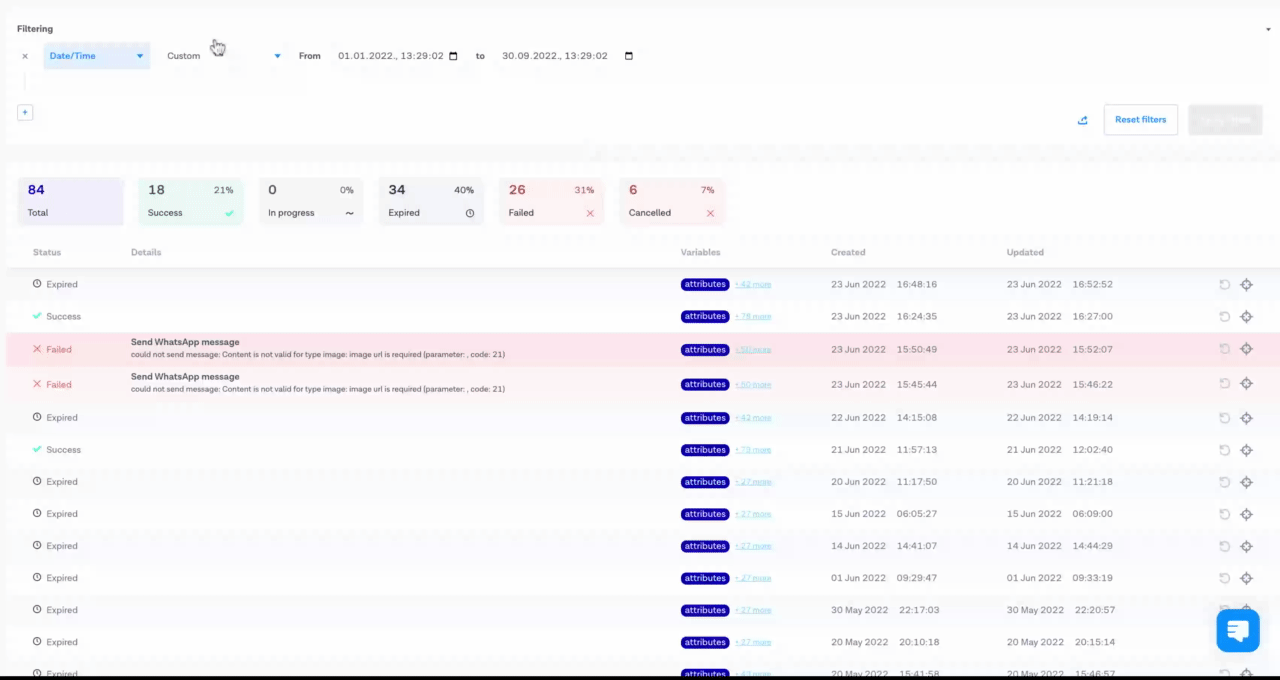

4) Add a filter of a variable and write in the name contact.phoneNumber to search by number or contact.displayName to search by display name:

Results of this search will be specific invocations involving the end user complaining.

Example 2: Search for an error

Another scenario is one where you would like to search for a specific error:

1) Visit the Flow

2) Navigate to its Logs:

3) Select the timeframe you would like to apply for your search:

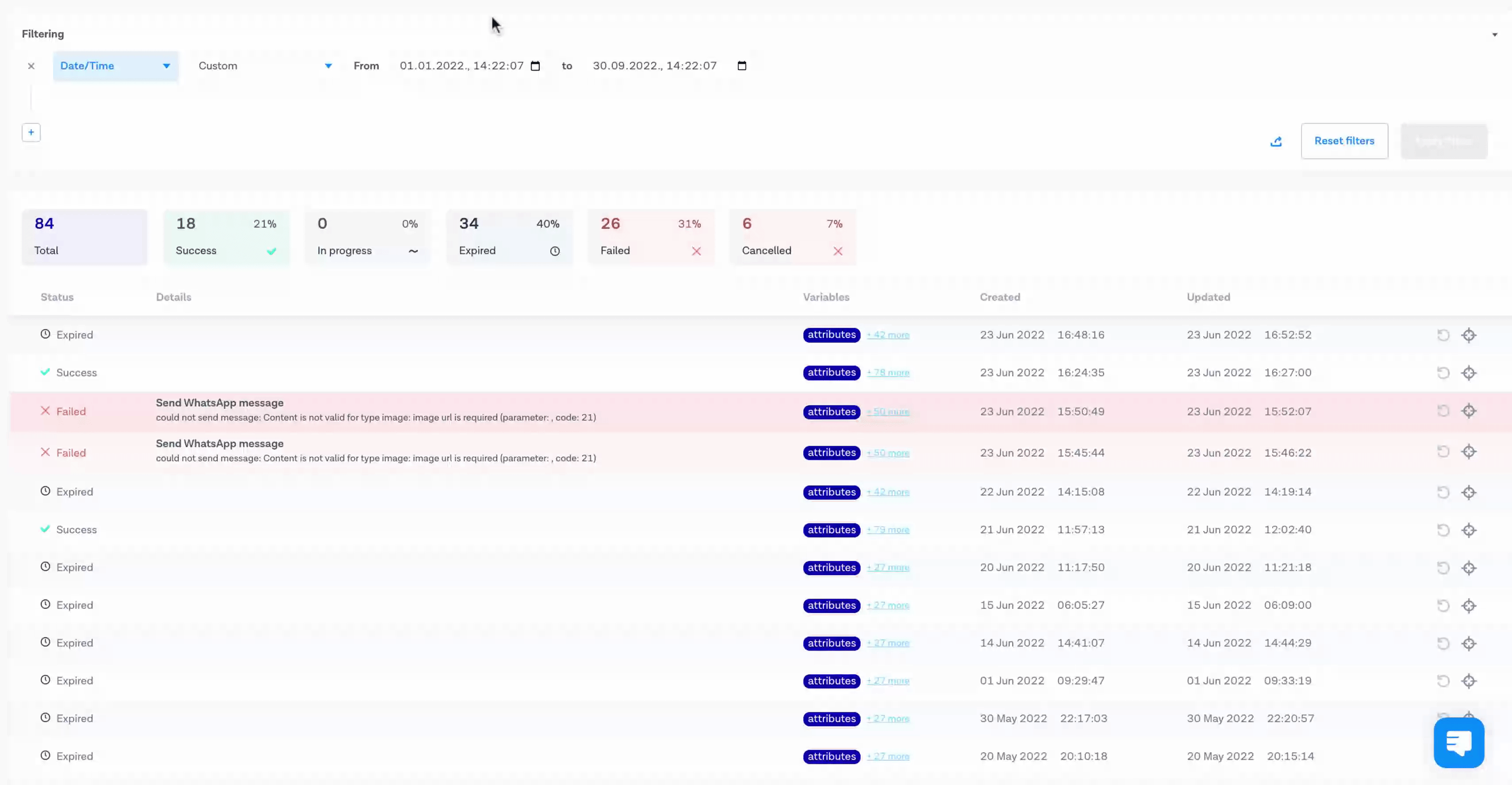

4) Add a filter of failure details and write in the error description or code you would like to know more details on, ex.: code 21:

With this search, you can pinpoint specific invocations containing the error and examine further by clicking on an invocation.

Example 3: Search for a custom variable

Search enables you to filter out any custom variable you might be using in your Flow:

1) Visit the Flow.

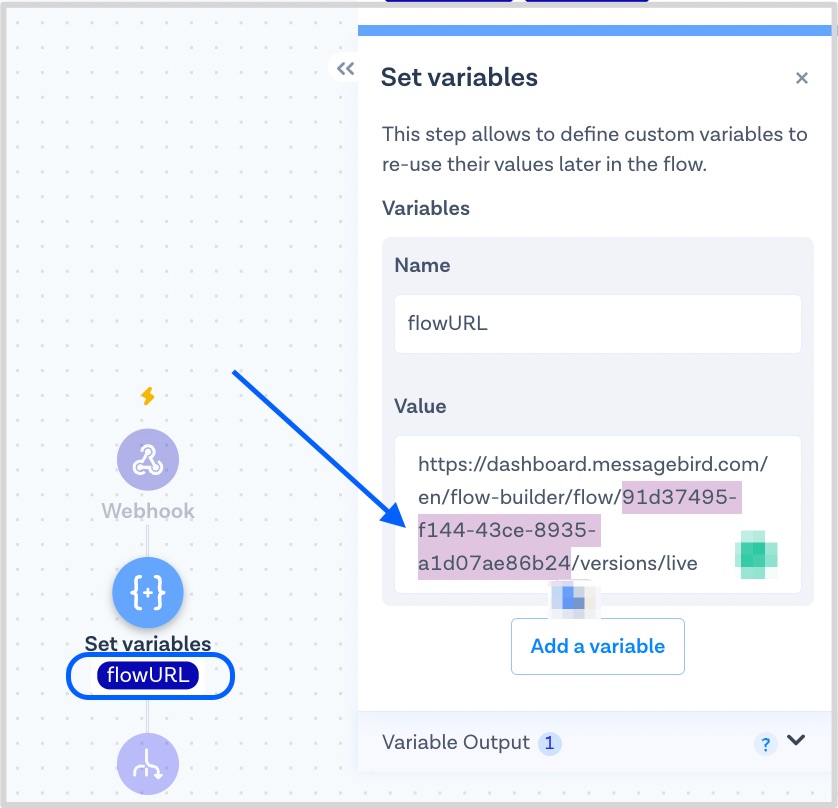

In this example, we have a Flow that has a set variable of flowURL and we would like to filter out all invocations containing it. For that we will use the flow ID contained in the URL: 91d37495-f144-43ce-8935-a1d07ae86b24:

2) Navigate to its Logs:

3) Select the timeframe you would like to apply for your search:

4) Add a filter of variable and write in the name of the custom variable and the text (flow id in this case) it contains:

Example 4: Search based on if a step has been executed or not

When the goal of your search is to determine if a step in your Flow has been executed or not, the way to accomplish it is by searching for a variable output of a specific step. To give you an idea, the Create Inbox ticket step has its set of variables that are generated by it:

• inboxTicketNumber

• inboxTicket object variable with details from an Inbox ticket

• inboxCreateTicketStatus

Similarly, other steps have their own output of variables. If you search for any of those variables with the condition of present, you will be able to filter any invocation that contains them. In turn, if there are no results from such a search, the step has not been executed.

Let's see how to search:

1) Visit the Flow

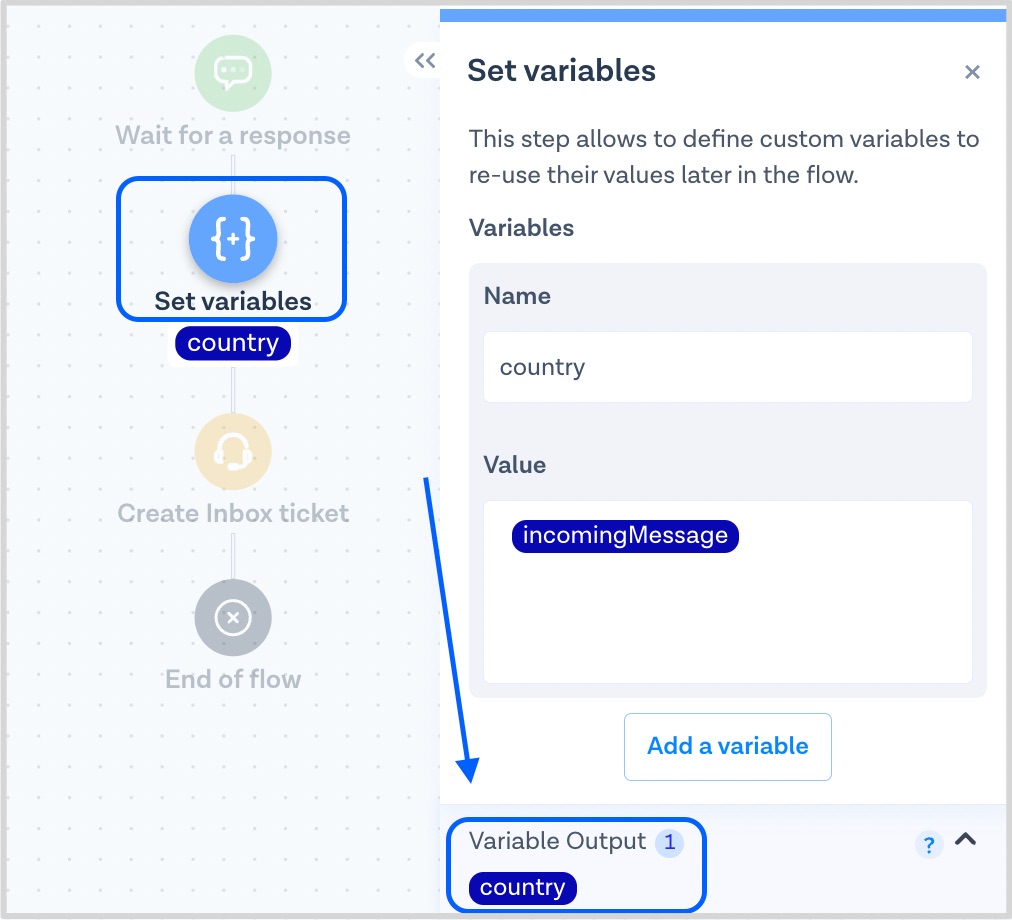

2) Navigate to the step you wish to filter out and open its configuration panel by clicking on the step:

3) Go to the Flows Logs:

4) Select the timeframe you would like to apply for your search:

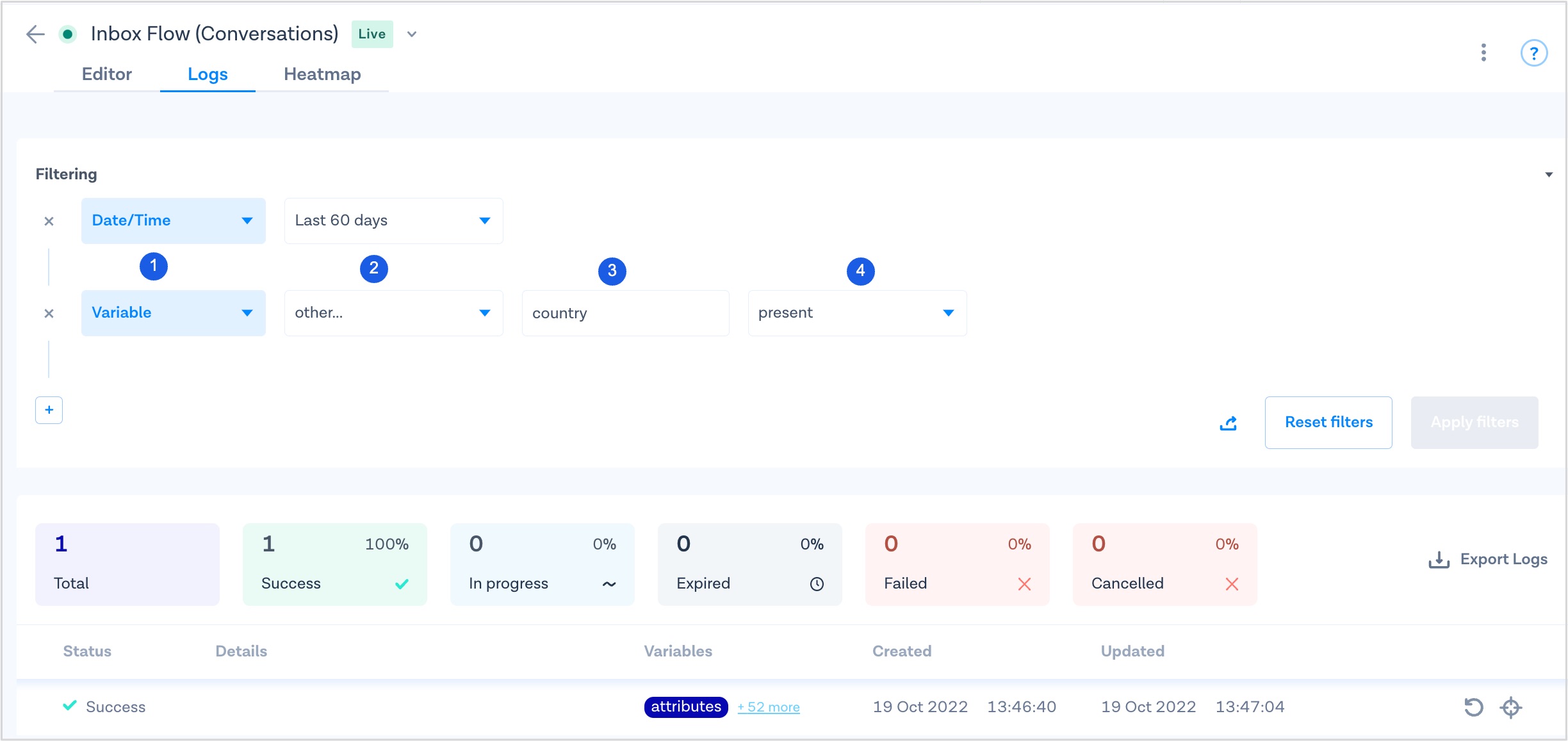

5) Add a filter of a variable, write the name of the specific variable from the step and add the condition of present:

If there is an output to your search, the step has been executed. On the other hand, if no invocations are listed, the step has not been executed.

Example 5: Search to determine if an end-user dropped off from a chatbot Flow

There is a variable in Flow Builder created upon every Create Inbox Step called inboxTicket.ticketUrl . It can be used to figure out how many Flows invocations ended by the end-user finishing the Flow successfully without human interaction in Inbox, as opposed to those invocations that have ended with the end-user dropping off from the Flow.

By conjugating a search combining these two criteria:

• inboxTicket.ticketUrl does not exist (an Inbox ticket was not created) with

• an Expired logs status

you will be given a result indicating how many end-users have dropped out of the Flow.

If we conjugate these two criteria in the search:

• inboxTicket.ticketUrl does not exist (an Inbox ticket was not created) with

• a Success logs status

the result will show the number of invocations ending within the Flow, handled by the configured chatbot in a Flow, without resulting in an Inbox ticket.

For this search:

1) Visit the Flow

2) Navigate to its Logs:

3) Select the timeframe you would like to apply for your search:

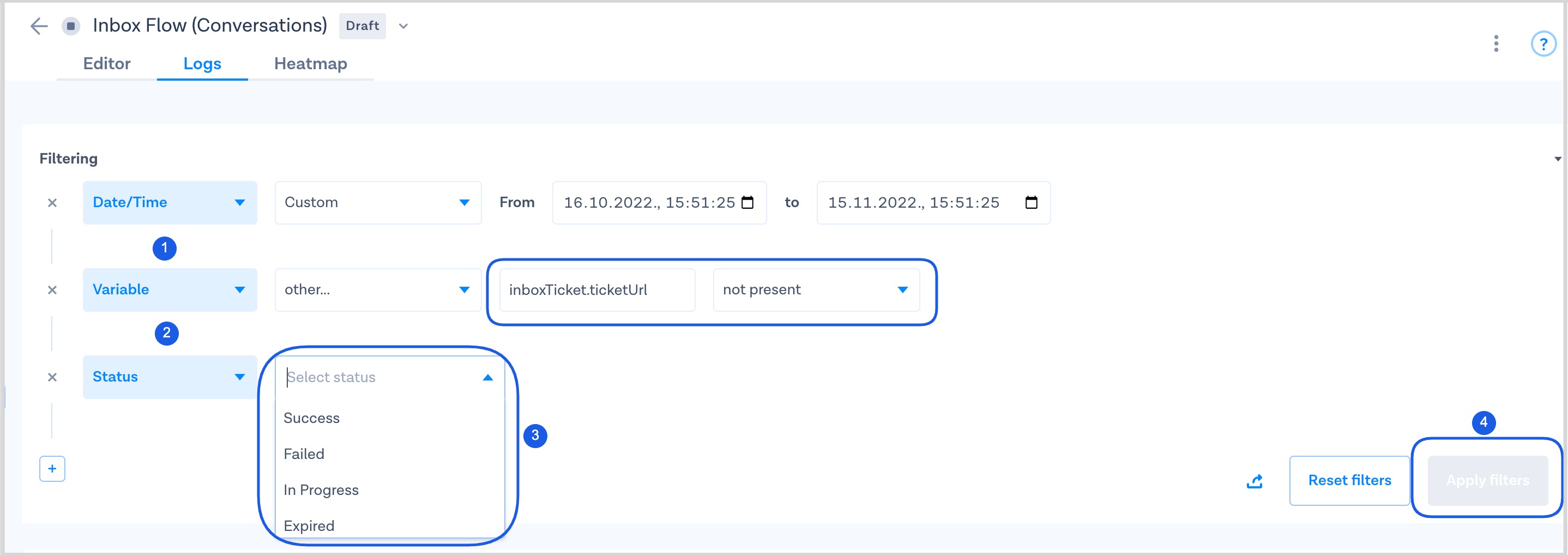

4) Add a filter of a variable, and use inboxTicket.ticketUrl is not present

5) Add a 3rd filter of status, set to expired or success, depending on if you are looking for the number of end-users that have dropped off (expired) or have been handled by the Flow's chatbot without ending in Inbox (success):

The output will be the number of such invocations.

FlowBuilder Logs can also be exported by following the instructions here.

📤 Feel free to contact our Support in case you might need some help!
