WhatsApp Campaigns delivery status report

If you are sending Whatsapp template messages and would like to track the performance of the Campaigns, this solution will help you capture and record the status updates in a Google sheet. With the data in the Google sheet, you can later run reports to identify open and delivery rates.

Different Statuses This solution will record statuses like Sent, Transmitted, Delivered, Read, and Rejected/ Failed. For more information on what each status means, please refer below:

transmitted	The message has been handed over to our Whatsapp on-premise service
sent	The message has been accepted by Meta cloud services
delivered	The message was delivered to the recipient's device.
read	The recipient read the message.
failed	Whatsapp has failed to deliver the message. This status is retried up to 3 times. This happens between the WA on-premise service and Meta Cloud Services. It goes from transmitted status to failed status
rejected	MessageBird or Meta has rejected the message with a reason added to the webhooks. i.e., invalid contact

Implementation Process

7KB

Export of WA Status Report - Simplified - Template name.json

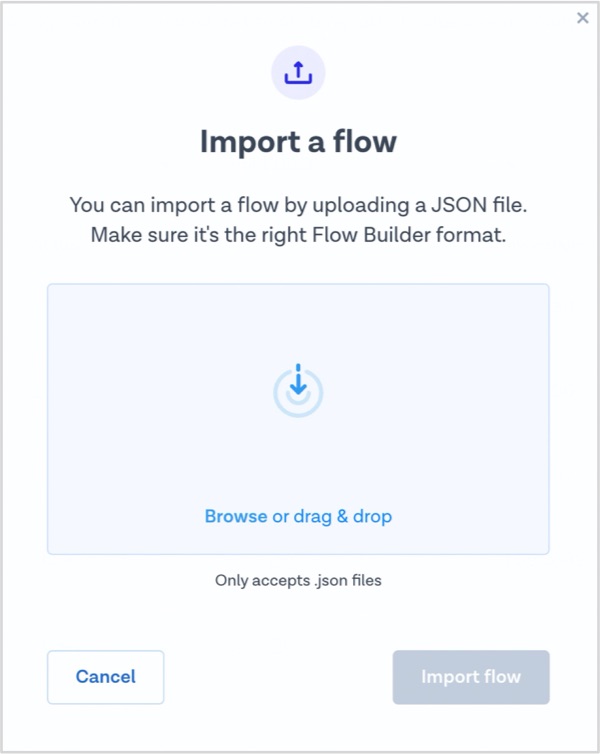

1. Download the flow template above and import it into your workspace.





2. Download this spreadsheet to your computer and then import it (not upload) into Google Sheets. Once imported, make sure these tabs are at the bottom:

55B

WA Status Report - Simplified - Rejected.csv

1. Link Google Sheets account from Integrations > Google Sheets > Configure. Select Link another account and follow the steps, click Save once it’s done.

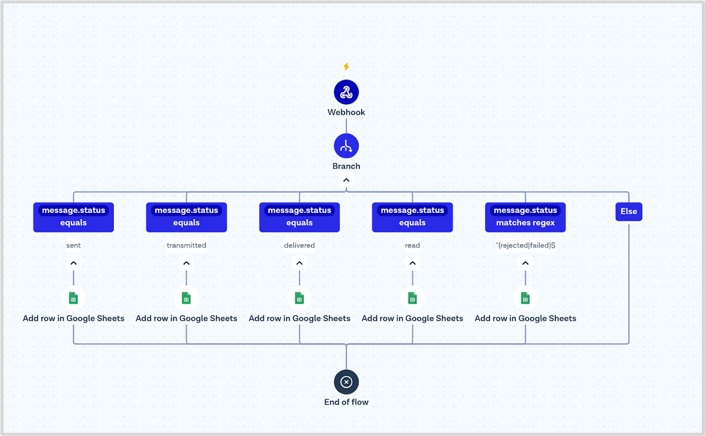

2. Go to Flow Builder and configure the imported flow. Click Add row in Google Sheets step to connect the Google Sheets and define the variables for all the columns. Repeat the steps for each status. For sent, transmitted, delivered, and read statuses: Column A - Time - {{currentTime}} Column B - MessageID - {{message.id}} Column C - To - {{message.from}} Column D - To - {{message.to}} Column E - Template Name - {{message.content.hsm.templateName}} Column F - Status - {{message.status}} For rejected and error status: Column A - Time - {{currentTime}} Column B - MessageID - {{message.id}} Column C - To - {{message.from}} Column D - To - {{message.to}} Column E - Template Name - {{message.content.hsm.templateName}} Column F - Error Code - {{message.error.code}} Column G - Error Description - {{message.error.description}}

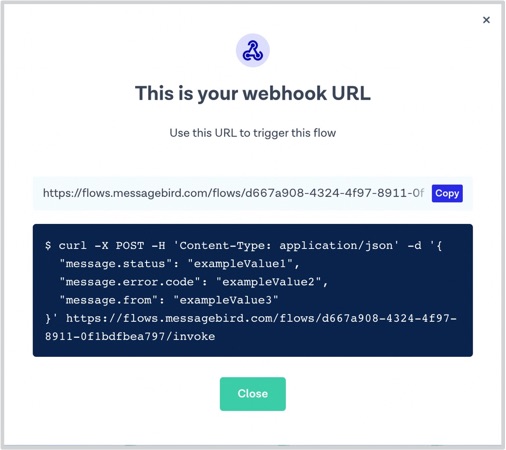

3. Publish the flow and copy the Flow webhook URL



4. You can create and enable the message updated webhook ONCE using Postman or Terminal after the above steps are done. Please refer to this video for better understanding - https://share.getcloudapp.com/qGuxzpNY


   curl --location --request POST 'https://conversations.messagebird.com/v1/webhooks' \
   --header 'Authorization: AccessKey your_API_KEY' \
   --header 'Content-Type: text/plain' \
   --data-raw '{

   "events": ["message.updated"],

   "channelId": "To be replaced with your Whatsapp Channel_ID",

   "url": "To be replaced with the WA Status Report flow webhook URL"
   }'

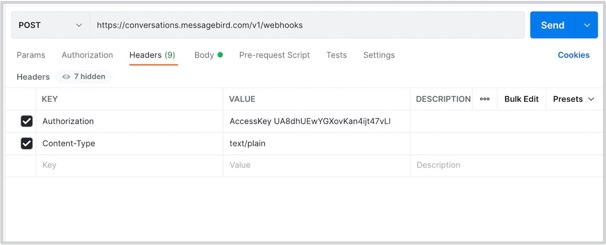

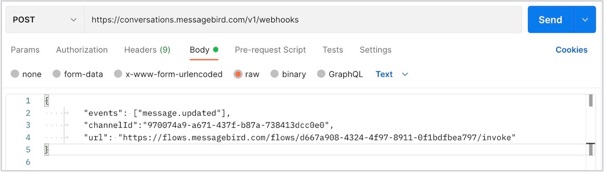

   Sample call from Postman:





   If you get 201 created as the response for the above call, it implies that the webhook is enabled successfully. If you receive 404 not found or any other error codes, reach out to the Support team or your MessageBird (TAM/CSM/TIM).

5. Once enabled, all message statuses from that channel ID will be automatically pushed to your Google Sheet.

Note

• The final step [Step 6] needs to be done only once, and it can be done by yourself or the MessageBird team internally using Postman or Terminal. There is no need to make the webhook call after every campaign.

• In case the URL of the webhook flow has changed to a different URL, Step 6 needs to be done again using the updated webhook URL

• When a message is sent, it goes through different statuses, such as

• • Transmitted → Sent → Delivered → Read [or]

  • Transmitted → Failed So you can find a record for the same message with different statuses in each tab of the sheet.

• The timestamp displayed on the sheet is in UTC. With this solution, the time conversion to your specific timezone needs to be completed manually.

How to calculate the Delivery rate and Open rate The Google sheet will have all the raw data of the different statuses the messages went through for all the Whatsapp template messages. You can then use this raw data and derive on Delivery rate and Open rate using the following formulas: Delivery rate = Number of messages delivered / Number of messages sent * 100

Open rate = Number of messages read/ Number of messages sent or delivered * 100
